Fused Deposition Modeling In Dentistry: Technical Guide, Clinical Uses, And Compliance

Overview

Fused Deposition Modeling (FDM) has earned a pragmatic place in digital dentistry thanks to its low cost, simple operation, and rapid turnaround. While it cannot match resin-based systems (SLA/DLP) for precision intraoral devices, FDM excels for study models, educational replicas, pilot surgical guides, and communication tools - Making it a smart entry point and a complementary technology in a multi-printer environment.

Technical Overview of Dental FDM

FDM in dentistry mirrors general FDM mechanics but adapts to dental imaging and CAD/CAM workflows.

Dental-Specific Workflow

• Digital acquisition: intraoral scans/CBCT.

• CAD: tooth libraries, occlusion setup, surgical planning.

• STL preparation: watertight mesh, shelling, supports.

• Slicing: dental-tuned parameters and orientations.

• Printing: layer-by-layer thermoplastic deposition.

• Post-processing: support removal, smoothing, sterilization (if required).

Materials for Dental Use

• PLA: stable, low-warp models; suitable for education and records.

• PETG: tougher, chemical-resistant models; useful for splint patterns.

• ABS: durable; vapor-smoothable; pilot surgical guides (non-implant-contact).

• TPU: flexible models and protectors (non-intraoral use).

• PC/PC-blends: higher heat resistance; select sterilization compatibility.

Key properties needed: Biocompatibility for intended use (most FDM parts are non-patient-contact), sterilization compatibility where applicable, and dimensional/color stability for reliable communication and records.

Clinical Applications in Dentistry

FDM’s strength is fast, cost-effective models and planning aids rather than final intraoral devices.

Orthodontics

• Study models for records, planning, progress, and case presentation.

• Temporary retainers/splint patterns and emergency backups.

• Bracket positioning (indirect bonding) pilot guides for pre-visualization.

Surgery & Planning

• Pilot implant/osteotomy guides for planning (not for final placement).

• Resection/reconstruction planning models.

• Anatomical replicas for team rehearsal and patient consent.

• Advantages: low-cost iteration, in-house control, fast refinements.

Prosthodontics

• Diagnostic wax-up visualizations.

• Try-in denture bases and occlusion checking models.

• Custom tray and splint patterns (printed patterns for subsequent fabrication).

• Master casts for communication and mounting (non-definitive).

Educational & Communication Value

• Dental education: anatomy, pathology, and procedure simulation models.

• Student skill practice: cavity prep, access, crown prep on printed typodonts.

• Patient education: demonstrate tooth movement, implant positioning, surgery steps.

• Research: repeatable models for method comparisons and device testing.

Parameters & Quality for Dental Prints

Balancing accuracy, speed, and cost is essential for predictable outcomes.

Recommended Ranges (Models & Guides)

• Layer height: 0.1–0.2 mm for improved detail without large time penalties.

• Infill: 40–60% (grid/honeycomb) for stiffness and efficiency.

• Speed: 40–60 mm/s for surface quality and dimensional stability.

• Temperatures: material-specific; keep filament dry to prevent porosity.

• Supports: minimize via orientation; use breakaway or soluble for fine features.

Accuracy Targets

• Dimensional tolerance: ±0.3–0.5 mm typical for desktop FDM.

• Feature resolution: ≥0.4 mm (0.4 mm nozzle baseline).

• Occlusal detail: acceptable for planning and communication, not for definitive margins.

• Conclusion: suitable for study models and planning; not for final restorations.

Post-Processing

• Support removal with detail preservation.

• Mechanical finishing, media tumbling, or vapor smoothing (ABS).

• Cleaning and optional sealing coats for aesthetics and durability.

• Sterilization only when material and geometry permit (verify deformation risk).

FDM vs. Other Dental 3D Printing

FDM complements resin and powder-bed systems rather than replaces them.

Comparative Summary

• FDM: Accuracy ±0.3–0.5 mm; lowest cost and easy operation; best for study models, education, pilot guides; caveats: layer lines, limited fine detail.

• SLA/DLP: Accuracy ±0.05–0.1 mm; moderate cost; best for splints, trays, precise guides, provisionals; caveats: resin handling and post-cure.

• SLS/MJF: Accuracy ±0.1–0.2 mm; high cost; best for durable nylon parts and frameworks; often outsourced.

• PolyJet: Accuracy ±0.05–0.1 mm; high cost; best for multi-material demos; expensive materials/maintenance.

Decision factors: accuracy needs, material requirements, production volume, budget, and in-house capability.

Regulatory & Safety Considerations

• Intended use:

  • Educational models: generally Class I and often exempt.

  • Surgical guides contacting tissue/bone: typically Class II (510(k) for U.S.) when used clinically; FDM guides commonly for planning, not placement.

• Quality management: adopt ISO 13485–aligned procedures if producing devices.

• Materials: confirm biocompatibility for any patient-contact device.

• Safety: MSDS, ventilation for ABS/PC, PPE, waste handling, cross-contamination control.

Economics for Practices & Labs

• Printer costs: $500–$5,000; filament: $20–$50/kg; low maintenance and energy.

• Savings: 60–80% vs. outsourced study models; 24–48 h turnaround in-house.

• ROI: rapid when used for orthodontic models, consult visuals, and surgical planning.

• Strategic value: improved case acceptance and communication; lab–clinic alignment.

Limitations & Challenges

• Accuracy/finish: visible layers, limited margin fidelity, rough surfaces.

• Materials: limited directly intraoral-safe options; heat/sterilization constraints.

• Mechanical anisotropy: orientation affects strength and detail.

• Skill: parameter tuning and post-processing significantly impact outcomes.

Future Directions in Dental FDM

• Higher-resolution motion systems and nozzles; non-planar slicing to reduce staircase effect.

• Multi-material deposition for support and flexible features.

• AI-driven slicing and closed-loop monitoring for dimensional control.

• New filaments: antimicrobial, biocompatible grades, and better sterilization resistance.

• Deeper integration with scanner-to-printer cloud workflows and automated QA.

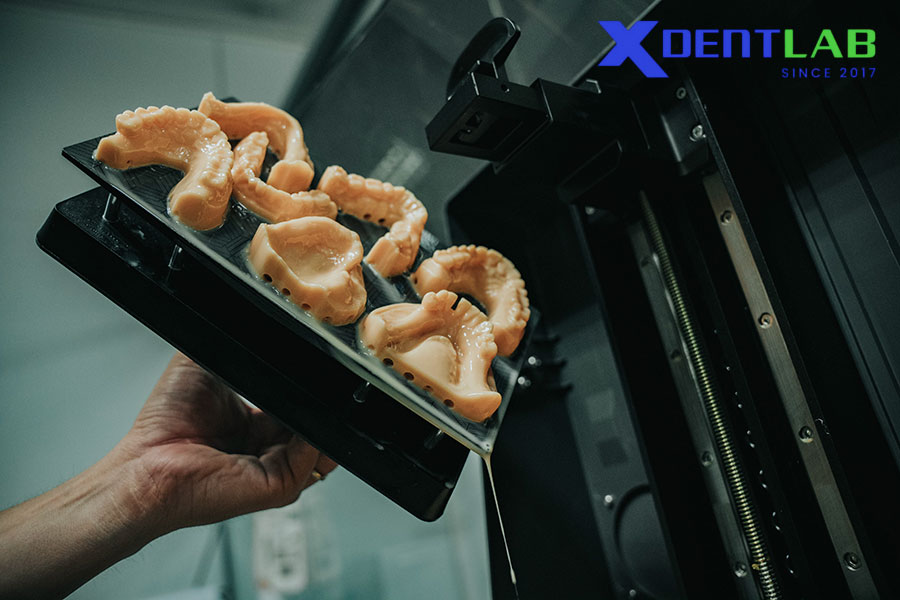

Best Practices for Implementation

Equipment & Environment

• Enclosed chamber, reliable bed leveling, dual extrusion (for soluble supports).

• Dry-box for hygroscopic filaments (e.g., PA, TPU), HEPA/charcoal filtration for ABS/PC.

Workflow & Quality Control

• Standardized STL prep and parameter libraries by indication.

• Calibration coupons and first-article checks.

• Dimensional verification at key landmarks, batch tracking, documented parameters.

• Scheduled maintenance and operator training on slicing, supports, and material handling.

• Retain scan-to-print traceability and QA records for audits and lab–clinic communication.

Practical Takeaways for Dental Teams

• Use FDM where it excels: study models, planning aids, educational pieces, pilot guides.

• For high-precision intraoral devices, combine FDM with SLA/DLP and validated resins.

• Stabilize environment and materials (dry filament, enclosed chamber) to reduce warping and variability.

• Treat FDM as part of a compliant digital workflow with documented parameters and QC checks.
